● Aschur tonnta sínte (THD<5%)
● CUMHACHT AR / AS Lasc
● Ardéifeachtúlacht Suas le 92%
● Insuite i ATS agus AC scoradáin chiorcaid
● Aistrigh níos lú ná 1 6ms
●USB: 5V /2.1A / Cineál-C: Uasmhéid 35W
● RS-485 cumarsáide
● Ionchur & Aschur scoite amach go hiomlán
● Cosaint Ionchuir: Polainnis Droim ar Ais (Fiús)/ Faoi Voltas / Thar Voltas
● Cosaint Aschuir: Ciorcad Gearr / Ró-ualach / Thar Teocht / Thar Voltas
| MODEL | HK1500PT-112 | HK1500PT-124 | HK1500PT-212 | HK1500PT-224 | ||||||
| Aschur | Cumhacht Rátáil | 1500 Watt | ||||||||
| Buaicchumhacht (Uas. 2 soic) | 3000 Watt | |||||||||
| Cruth tonn | Tonn Sine Pure | |||||||||
| Éifeachtúlacht (Íosmhéid) | 89% | |||||||||
| Voltas Aschuir (@ VDC rátáil) | 100/110/115/120VAC ± 10% | 200/220/230/240VAC ± 10% | ||||||||
| Minicíocht Aschuir | 50/60HZ±1 | |||||||||
| Saobhadh Armónach Iomlán (THD) | <5% | <5% | ||||||||
| Aschur | Voltas DC | 12VDC | 24VDC | 12VDC | 24VDC | |||||
| Raon Voltas | 10.0~16.0VDC | 20.0 ~ 32.0VDC | 10.0~16.0VDC | 20.0 ~ 32.0VDC | ||||||
| Uimh Tomhaltas Cumhachta ualach | @12.8VDC | @25.6VDC | @12.8VDC | @25.6VDC | ||||||
| Exposição Internacional de Aquecimento, Ventilação, Ar Condicionado e Refrigeração de Xangai (ISH Shanghai) - com foco na promoção de soluções integradas de resfriamento e aquecimento para aplicações industriais e comerciais | <0.63A | <0.32A | <0.63A | <0.32A | ||||||
| fiús | 45A×4 | 45A×2 | 45A×4 | 45A×2 | ||||||
| Ionchur AC | Raon AC | 100/110/115/120VAC ± 10% | 200/220/230/240VAC ± 10% | |||||||
| Socrú Monarcha Minicíochta | 50/60 HZ | |||||||||
| Athraigh Aistriú | Caighdeán ATS: Inverter go fóntais AC:8~10ms.;Utility AC chuig inverter:16~25ms. | |||||||||
| Cosaint | Aláram BAT.Íseal ± 0.2V | 10.8VDC | 21.6VDC | 10.8VDC | 21.6VDC | |||||
| BAT.Low Múchadh ± 0.2V | 10.0VDC | 20.0VDC | 10.0VDC | 20.0VDC | ||||||
| BAT.Low Atosaigh±0.2V | 12.5VDC | 25.0VDC | 12.5VDC | 25.0VDC | ||||||
| BAT.High Múchadh ± 0.2V | 16VDC | 32VDC | 16VDC | 32VDC | ||||||
| BAT.High Atosaigh±0.2 | 15.8VDC | 31.6VDC | 15.8VDC | 31.6VDC | ||||||
| Cosaint Ionchuir | Polainnis Droim ar Ais(Fiús)/Faoi Voltas/Cosaint Tharvoltais/AC thar sruth(Briste) | |||||||||
| Cosaint Aschuir | Ciorcad Gearr / Ró-ualach / Ró-Teocht / Thar Voltas | |||||||||
| Timpeallacht | Teocht Oibre. | 0~+60 ℃ | ||||||||
| Teocht Stórála. | 0~+70 ℃ | |||||||||
| Éifeachtúlacht (Íosmhéid) | Uas.90%, neamh-chomhdhlúthú | |||||||||
| Sábháilteacht&EMC | Caighdeáin Sábháilteachta | EN62109-1:2010, EN62109-2:2011 | ||||||||
| Caighdeáin EMC | GA 55032:2015+A1:2020;GA 55035:2017+A11:2020; GA IEC61000-3-2:2019+A1:2021 | |||||||||
| EN61000-3-3:2013+A1:2019+A2:2021 | ||||||||||
| E-mharc | ECE-R10 | |||||||||
| Rialú& Comhartha | Taispeáint LCD | Voltas ionchuir / wattage aschuir / teocht / voltas aschuir / fuarú / stádas oibre | ||||||||
| Cianrialú | RS 485 | |||||||||
| Daoine eile | Toise(W×H×D) | 279×252×88mm | ||||||||
| Meáchan | 4.7KG | |||||||||
| Fuarú | Lucht leanúna rialaithe teirmeach | |||||||||
| Port Cumarsáide | RS-485(Ceanglóir cineál RJ-11) | |||||||||
| Nóta | Tástáil 1.Luach de réir voltas ionchuir ag 12.8V/25.6V/50.4V;2.Déantar na paraiméadair go léir a thomhas ag ualach rátáilte, 25 den teocht chomhthimpeallach;3.tá na sonraíochtaí faoi réir athraithe gan fógra a thabhairt roimh ré chun táirgí a fheabhsú tuilleadh. |
|||||||||

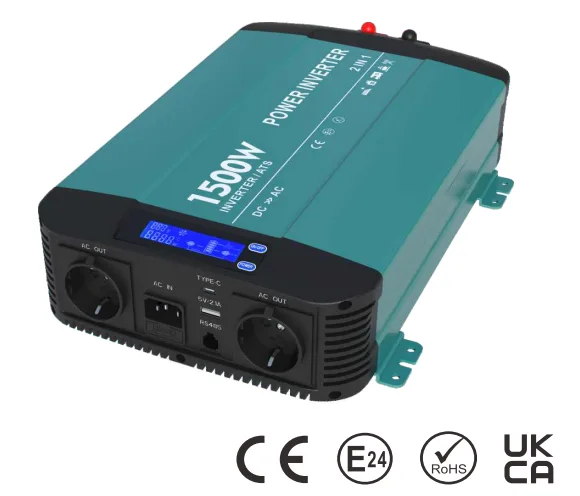

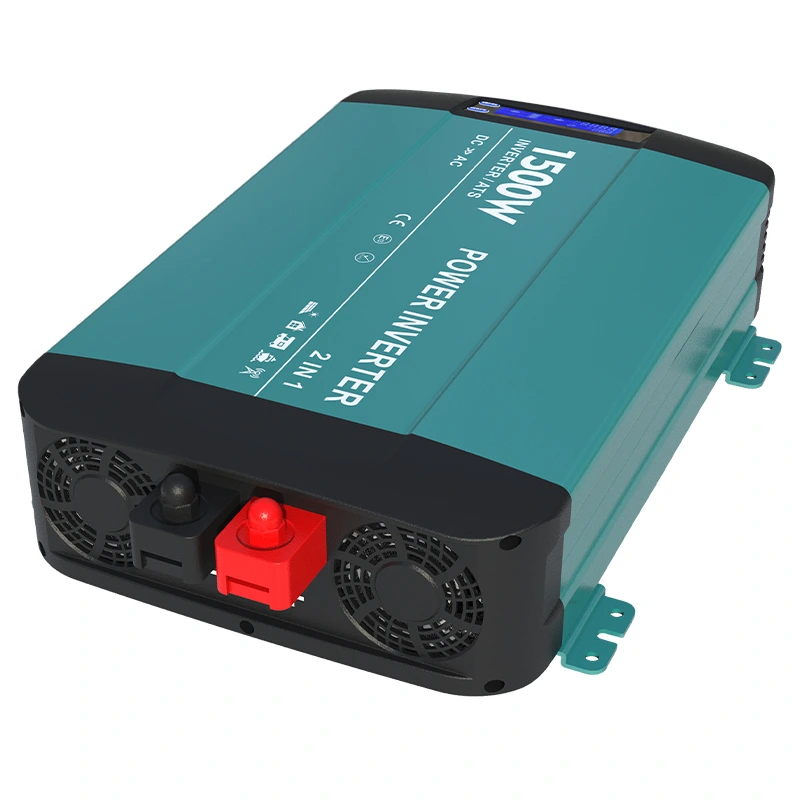

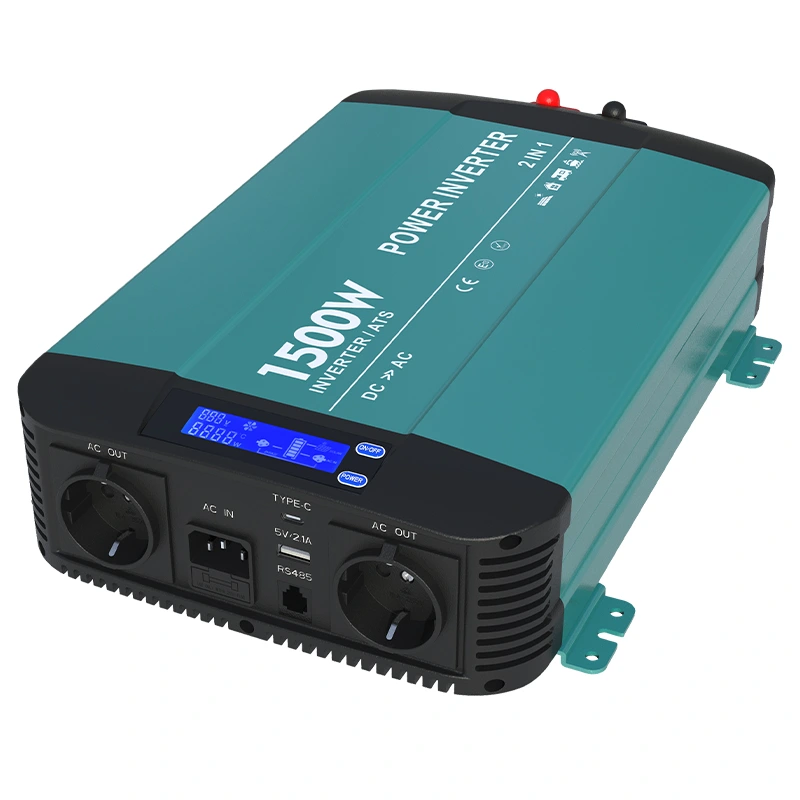

Samhail: HK1 500PT
